Sub-Category
HID Replacements
Bulb Dimmable
Yes-Dimmable
Bulb Kelvin
3000K/4000K/5000K
Harmonized Codes
8539.52.0091
Warranty
5 Year Limited - Hi-Pro
Burning Position
Base Up or Down
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Dimmable Down To
100 to 20 percent
Dimmable Function
Dimmable with optional modules
DLC Classification
Standard; Standard
DLC ID
PL48Y83ZQH0J; PLQPOPVP4M03
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy
130.00/135.00/140.00 LPW
Enclosure Rating
Enclosed Rated Lamp
Feature 1
MOL: 11.61 inches, MOD: 5.16 inches
Feature 3
Material: Aluminum and Polycarbonate
Feature 6
Rated for 50,000 hours
Feature 7
Damp location rated for indoor and outdoor use
Feature 8
FCC and RoHS compliant
Feature 9
5-year limited warranty
Incandescent Equivalent
750W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
Lens Material
Polycarbonate (PC)
Long Description

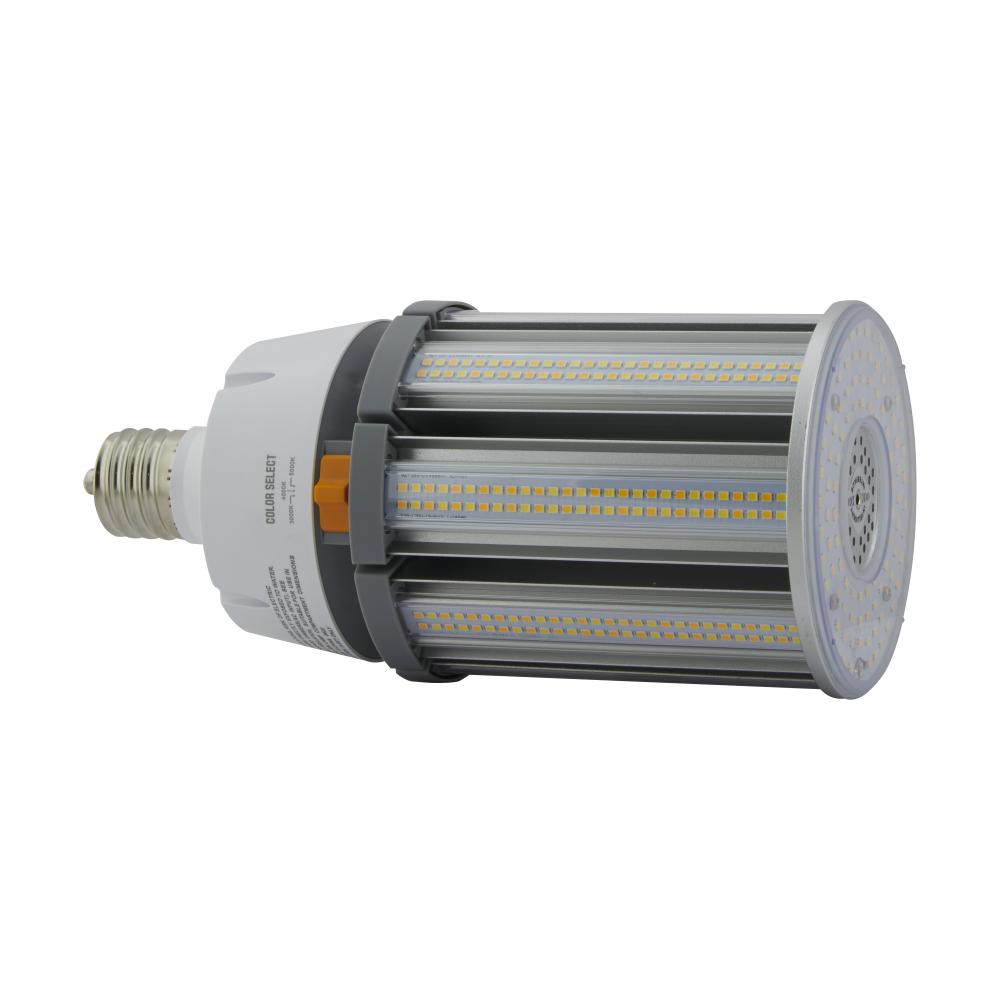

Satco's S13145 120-watt mogul extended base LED is one of the newest additions to the Hi-Pro LED family. This HID Replacement provides up to 75 percent in energy savings, advanced sensor port technology and is CCT selectable. The omni-directional light
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 9.85 in. Width: 9.85 in. Depth: 12.60 in.
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Romance Copy
Satco's newest additions to the Hi-Pro LED family provides up to 75 percent in energy savings, advanced sensor port technology and are CCT selectable. The omni-directional light is designed to fully and safely illuminate higher ceiling installations su
Short Description
120W/LED/HID/CCT/EX39/100-277V
Specification Notes
This is not to be used with a ballast
Surge Protection
Built-in surge protection - 4KV
Title 20 Compliant
Exempt
Total Harmonic Distortion
14.20%
