Sub-Category
HID Replacements
Harmonized Codes
8539.52.0091
Warranty
5 Year Limited - Hi-Pro
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Dimmable Down To
100 to 20 percent
DLC Classification
Standard; Standard
DLC ID
PL0NRCV506NZ; PLO20DYP1HZI
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Enclosure Rating
Enclosed Rated Lamp
Feature 2
250W HID Replacement
Feature 3
Damp rated for outdoor use
Feature 4
Corncob shape; White finish
Feature 5
L:8.77 inches; D:4.38 inches
Incandescent Equivalent
400W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lens Material
Plastic (PS)
Long Description

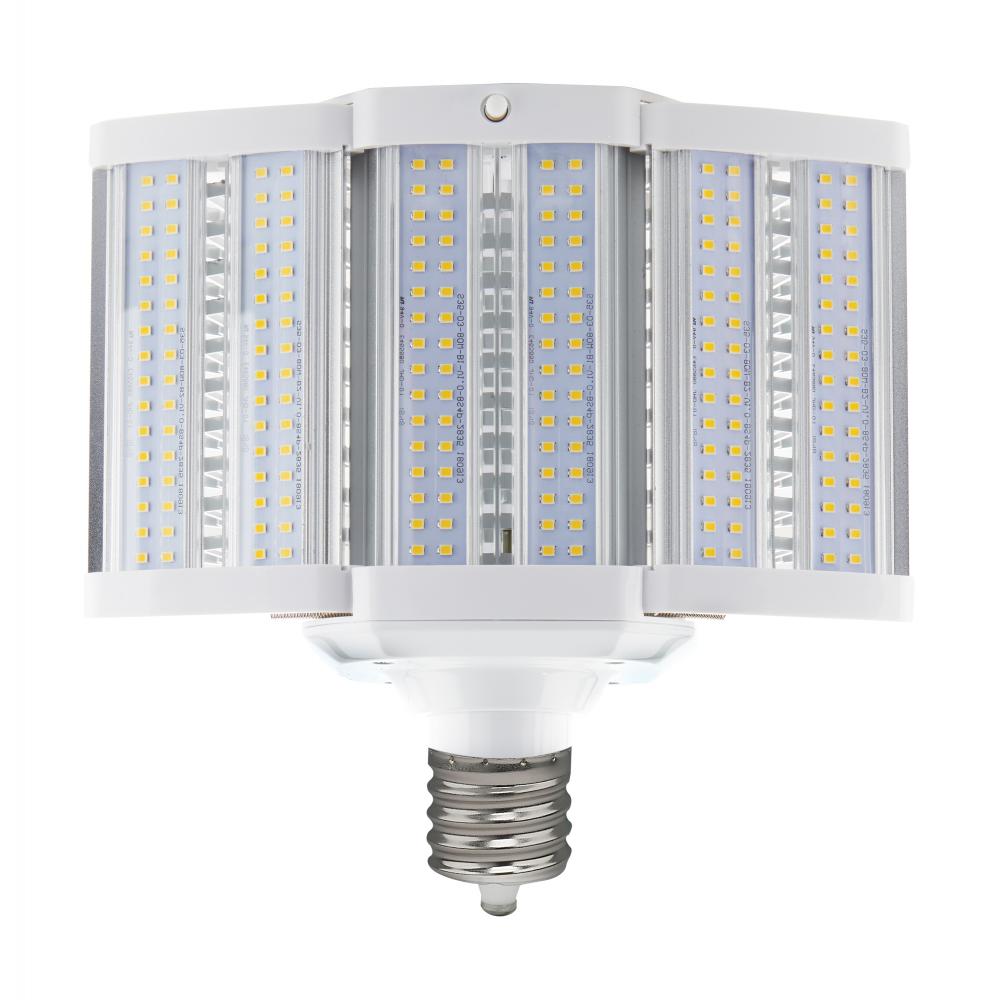

SATCO NUVO's 80W LED shoe box style lamp offers natural light and a 180 degree beam spread. The lamp features dimmability with optional control modules, built-in surge protection and a Mogul extended base. With a high lumen count and damp outdoor ratin
Material
Aluminum / Plastic
Minimum Compartment Size
Length: 11 in. Width: 9.2 in. Height: 11 in.
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Romance Copy
SATCO NUVO's second generation Hi-Pro shoebox lamps have just gotten a whole lot smarter! The lamps are suitable for new lamps and metal halide replacements. The Gen2 shoebox lamp offers higher efficiency, improved heat dissipation, and a port for moun
Short Description
80W/LED/HID/SB/5K/EX39
Specification Notes
This is not to be used with a ballast
Surge Protection
Built-in surge protection - 4KV
Title 20 Compliant
Exempt
Total Harmonic Distortion
15.10%
