Sub-Category
HID Replacements
Bulb Dimmable
Yes-Dimmable
Harmonized Codes
8539.50.0091
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Bulb Finish
Translucent White
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Dimmable Function
Dimmable only via the built-in dimmer on the lamp. Not dimmable via wall switch
Dimming Type
Step Dimming
Enclosure Rating
Enclosed Rated Lamp
Feature 1
Replaces 250-watt HID Technology
Feature 2
Long neck options fits most fixtures.
Feature 3
Advanced passive heat dissipation
Feature 4
Wide, 115 degree beam spread
Feature 6
Damp location rated
Feature 7
Dimmable with built-in dimmer only
Feature 8
6kV built-in surge protection
Feature 9
Rated for Use in Enclosed Fixtures
Incandescent Equivalent
400W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Long Description

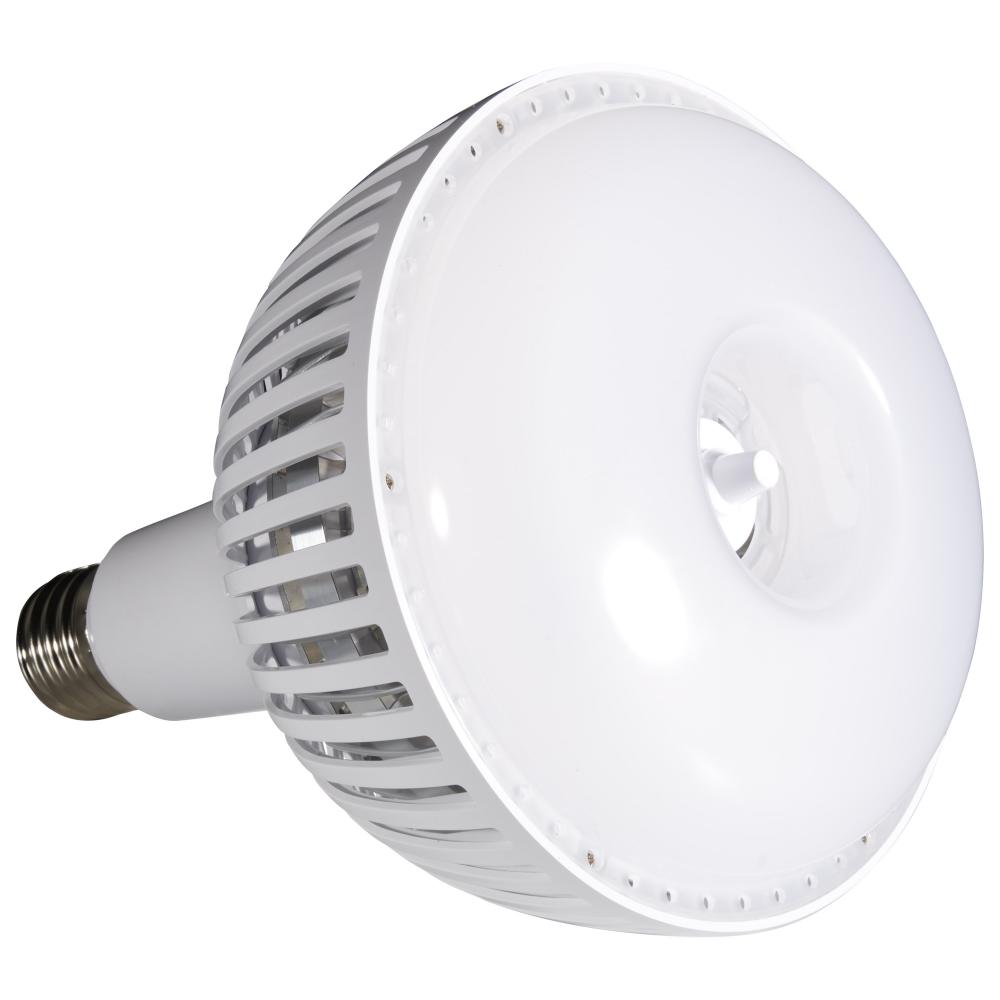

Satco's update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape of the new S23112, lends itself to virtually every fixture, and the heat dissipation feature means a cooler runnin
Minimum Compartment Size
Length: 13.5 in. Width: 13.5 in. Height: 12 in.
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +60C (+140F)
Romance Copy
Satco's update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape lends itself to virtually every fixture, and the heat dissipation feature means a cooler running, longer lasting l
Sensor Occupancy or Vacancy
No
Sensor Operation
Single Pole
Short Description
80W/LED/HID-HB/4K/120-277V
Specification Notes
Fixture has a built-in dimming control feature
Surge Protection
Built-in surge protection - 6KV
Title 20 Compliant
Exempt
