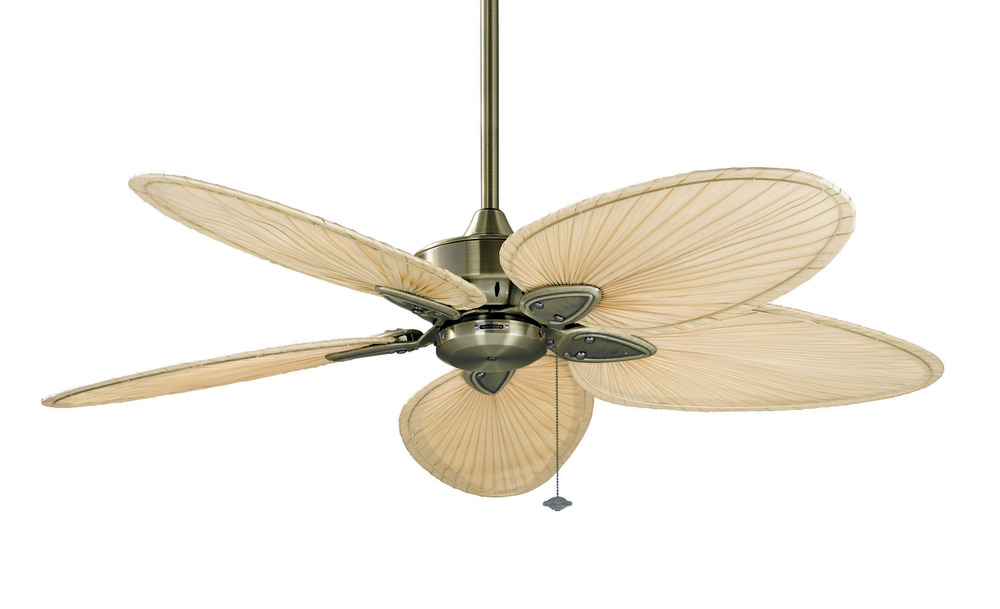

Windpointe - 52 inch-AB with with N Narrow Oval Blades (5XAA)

Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow

3312 Cubic Feet per Minute

Electricity Rate

48 Watts (excluded lights)

Airflow Efficiency

69 Cubic Feet Per Minute Per Watt

Downloads

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Product Specification

Item #

5XAA

Dimensions

Height: 14.50"

Width: 52.00"

Length: 52.00"

Additional product details

Internal #

5XAA

Category

Fan-Uni

Finish

Antique Brass

Option

Dry Rated

Family

Windpointe

Voltage

120 V

Additional Info

3 speed AC motor with reverse switch , 3312 CFM on High , Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold sep , Light kit adaptable (sold separately) , Pull Chain Operated , Set of 5 blades included with multiple finish options

Air Flow CFM

3312

Air Flow Efficiency

Amperage

0.41

Blade Finish

Narrow Oval Natural Palm

Blade Pitch

Blade Span

Canopy

5.75 Dia x 2.57 H

Diameter

9.06

Down Rod Included

Electricity Used

Harmonized Codes

8414.51.3000

Length

Light Kit Included

Material

Natural Palm

Motor Fan Speed

Motor RPM

110

Motor Size

188 x 25

Motor Type

Pull Chain Included

Yes

Ship Carton Height

11.93

Ship Carton Length

24.13

Ship Carton Width

13.15

Ship Weight

32.65

Sold By

Each

Warranty

Limited Lifetime

Weight

24.9

Wire Included

80"

Airflow Efficiency Low

126

Airflow Efficiency Medium

Avg Airflow Efficiency

Avg CFM Energy

2964

Avg Energy Use Watts

Avg Estimated Yearly Energy Cost

Avg Estimated Yearly Energy Cost on HIGH

Blade Finish Method

Natural

Blade Material

Natural Palm

Blade Reversible

Blade Sweep

Canopy Diameter

5.75 Dia

Canopy Height

2.57 H

Cap Included

Carton Cubic Feet

2.19

Cartons Per Unit

Case Height

11.93

Case Length

24.13

Case Quantity

Case Weight Pounds

32.65

Case Width

13.15

CEC Uploaded

Yes

Ceiling To Blade Edge

Ceiling To Bottom

14.5

CFM Low

1846

CFM Medium

2642

Compatible Accessories

CCK8002AB, DR1-12AB, DR1-18AB, DR1-24AB, DR1-36AB, DR1-48AB, DR1-60AB, DR1-72AB, DR1-CPAB, SCB1-52

Compatible Blades

B5131DC, B5131RC, B5132DC, B5132RC, B5133CYWA, B5133MOMP, B5133TKMH, B5260WA, B5270WA, B5280WA, B5300WA, B5310WA, B5330WA, B5340WA, B5350WA, B6030CY, B6030MH, B6030MP, B6030TK, B6060WA, B6070WA, B6080WA, B6110WA, B6130WA, B6131DC, , B6131RC, B6132DC, B6132RC, B6133TKMH , BPD1A, BPD4A, BPD4BL, BPD4MW, BPD5A, BPP1BR, BPP1TN, BPP4BR, BPP4GR, BPP4TN, BPW6030CY, BPW6030MH, BPW6030MP, BPW6030TK, BPW6090DNA, ISD1A, ISD1C, ISD2A, ISD4A, ISD4C, ISD7A, ISP1, ISP1RB, ISP2, ISP4, ISP4RB, ISP5,B6132DC, B6132RC, B6133TKMH

Compatible Controls

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Light Kits

F301AB, F401AB, F404AB, F423AB, LK112A, LK113WH, LK114AAB, LK114WAB, LK122A, LK124AAB, LK124WAB, LK250, LK260, LK500AB, LKLP101AB, LKLP102AB, LKLP111AAB, LKLP112AAB

Compatible Wall Controls

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin

China

Current Draw High

0.41

Current Draw Low

0.23

Current Draw Medium

0.33

DOE Classification

LSSD

DOE-FTC Uploaded

Yes

DOEFTC Uploaded

Yes

Downrod Length

Dry Rated

Yes

Exempt from DOE Procedure

Fan Energy Star

Housing Diameter

9.06

Included Control Type

Pull Chain

Leadwire

Max Ceiling Slope

Max Watt

Maximum Slope Degree

Motor Finish Method Type

Plated

Motor Reversible

Yes

Number of Blades

Number Of Speeds

Regulated Product

Yes

Reverse Switch Location

Switch Housing

RPM High (VI)

110

RPM Low (II)

RPM Medium (IV)

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 Hz

Watts Low

Watts Medium

Other Details:

3 Speed Ac Motor With Reverse Switch
3312 Cfm On High
Light Kit Adaptable (sold Separately)
Pull Chain Operated
Set Of 5 Blades Included With Multiple Finish Options
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
